10mm diameter micro linear motor screw stroke 10mm, 2-phase stepper motor

SM10 is a special customized motor with a screw rod effective distance of 10mm, a stepper motor with a screw rod, and an internal structure with anti rotation design. A rotor with a screw rod, when the rotor runs clockwise or counterclockwise, the screw rod will move forward or backward.
The step angle of the motor is 18 degrees, and the lead spacing is 1mm. The motor is usually a connecting wire, and FPC can be customized according to customer installation needs
Due to its small size, easy installation, and stepper motor design, it is generally used in micro precision design

Mechanical Dimension:MM

Technical Features

It converts the rotation of the motor into linear motion through the relative movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machines, printers, robots and other related fields.
At the same time, the external wiring part can use four (or five and six, also bipolar or unipolar drive) binding posts (light pins) or connecting wires, or FPC FFC PCB, etc. according to customer requirements.
The output part is linear.

Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

Specifications

Competitive Advantage

• High quality and the best price.

• Fast deliver,storage company and rich inventory

• Near Shanghai port, the traffic is very convenient.

•

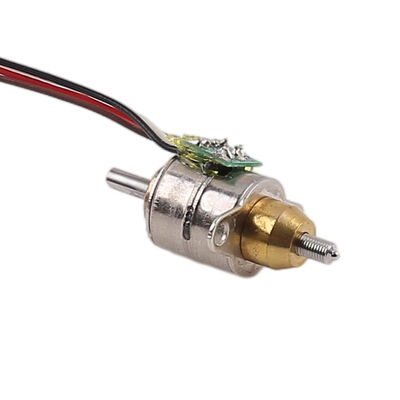

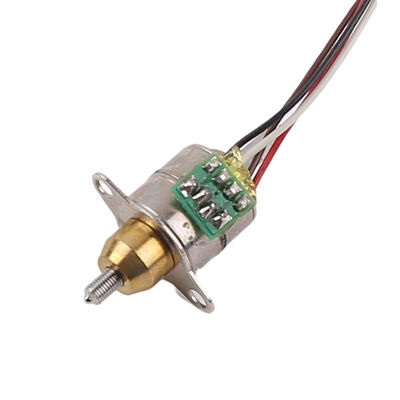

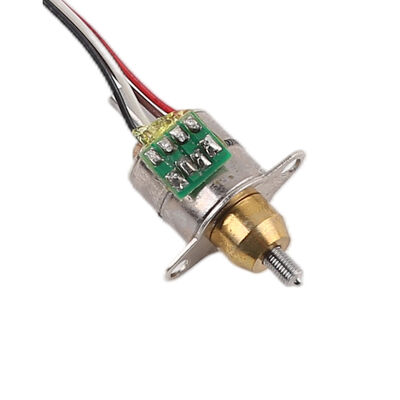

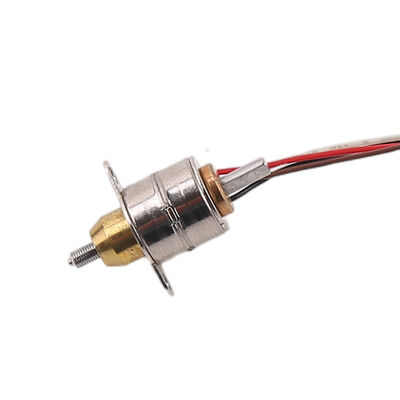

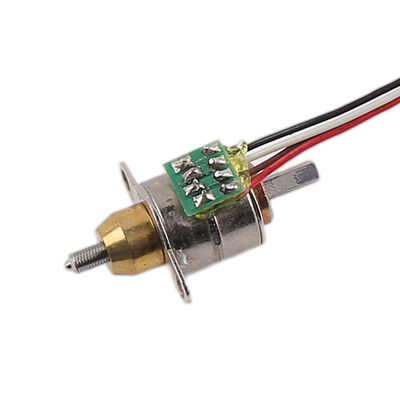

Product Detail Presentation

Some informations about us:

Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products

The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!

The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.

For motors with special specifications (number of phases, voltage, reduction ratio) and other size modifications, we can customize them according to the actual needs of customers. If customers need more information, please feel free to contact me.
